Aihasd SV Tension de sécurité APP Control Commutateur sans fil WiFi Module Smart Home Soutien au développement secondaire

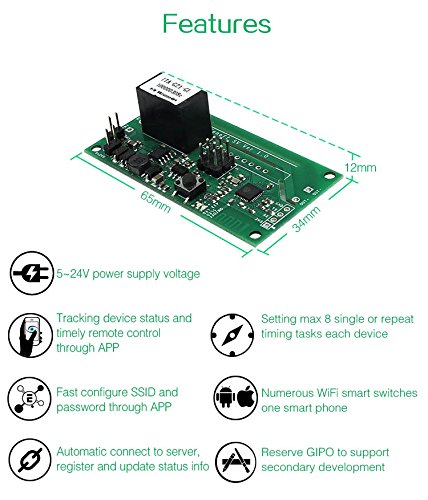

Features:
Support 5~24V power supply
Support fast configure SSID and password through APP.
Support automatic connect to server, register and update status info.
Support tracking device status and timely remote control through APP.
Support setting max 8 single or repeat timing tasks each device
Reserve GIPO to support secondary development.
Support numerous WiFi smart switches one smart phone.

WiFi Characteristics:
802.11 b / g / n
Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant frequency support 80 MHz and 160 MHz, support RTOS
Built-in TCP / IP protocol stack
Built-in TR switch, balun, LNA, power amplifier and matching network
Built-in PLL, voltage regulator and power supply management components, 802.11b mode +20 dBm output power
A-MPDU&A-MSDU aggregation and 0.4μs guard interval
WiFi 2.4 GHz, supports WPA / WPA2 safe mode
Support cloud OTA upgration
Support STA / AP / STA + AP mode
UART, I2C, PWM, GPIO
Deep sleep maintain current is 10 uA, shutdown current is less than 5 uA
Wake-up, connect and transfer data packets in 2 ms
Standby power consumption is less than 1.0 mW (DTIM3)
Operating temperature range: -40 – 125
Other parameters as follows:

Other parameters as follows: https://www.adrive.com/public/PYNCbU/F000703.rar

Package Included:

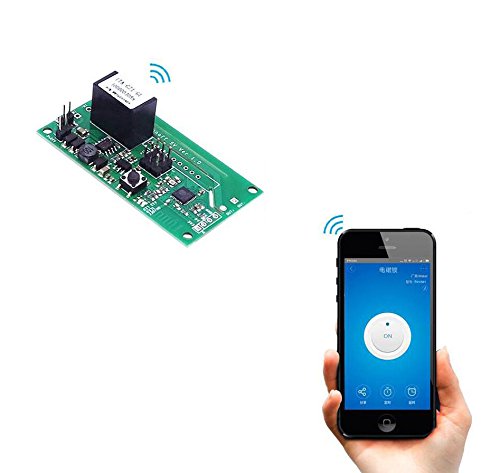

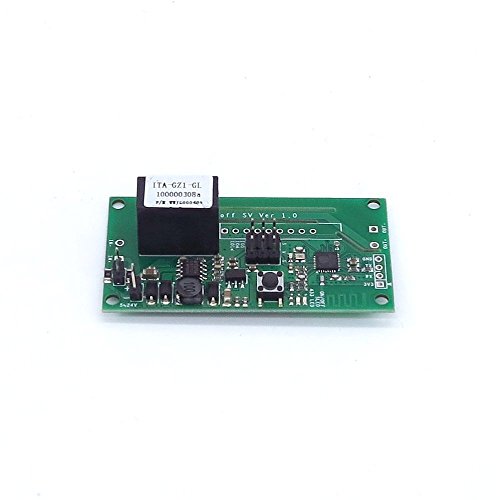

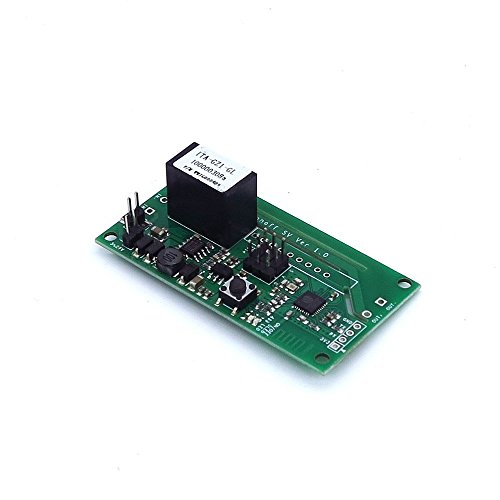

1 X SV Safe Voltage WiFi Wireless Switch

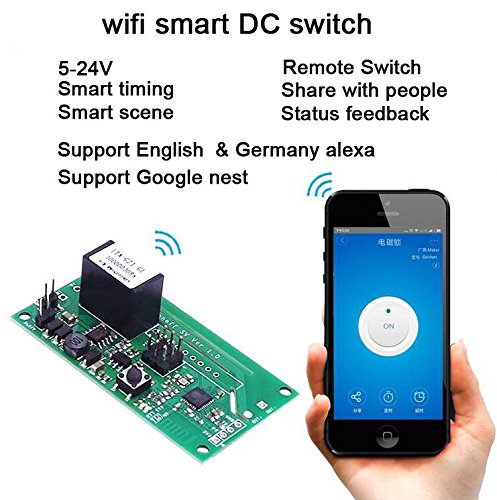

SV(safe voltage) is a low power supply version,which supports 5-24V power supply. The power separation circuit enables it to control AC or DC power for the connected device, but you need to do some welding to realize this function.
SV has GIPO reserved to support secondary development. This version does not have 433 RF function and without shell.
IT is a low-cost, affordable device that help you to step into the amazing smart home.It is a WiFi wireless switch that can connect to appliance of different types and brands. IT sends data to cloud platform through the WiFi Router, which enables you to remotely control all appliances with the App eWeLink on your smart phone. The server of It is Amazon AWS global server.
makes all your home appliances smart, as long as your phone has network you can remotely turn on or turn off your appliances from anywhere at any time. And by setting timing schedules for your appliances, you can maintain a carefree life.; The App eWeLink enables you to control your devices easily. You can download the iOS version in App Store and the Android version in Google Play.
